H.Y -TUBE

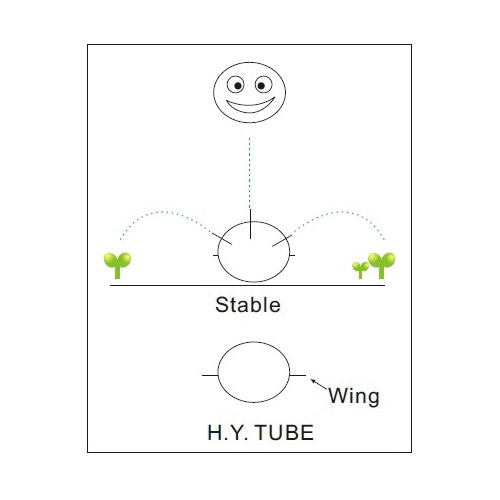

H.Y. TUBE

Model : H.Y. TUBE

Pattern : H.Y-A (Foggy Type)
Size : 3/4″, 1″, 1″-1/4″ (2 holes、3 holes)

Pattern : H.Y-B
Size : 3/4″, 1″, 1″-1/4″ (3 holes、5 holes)

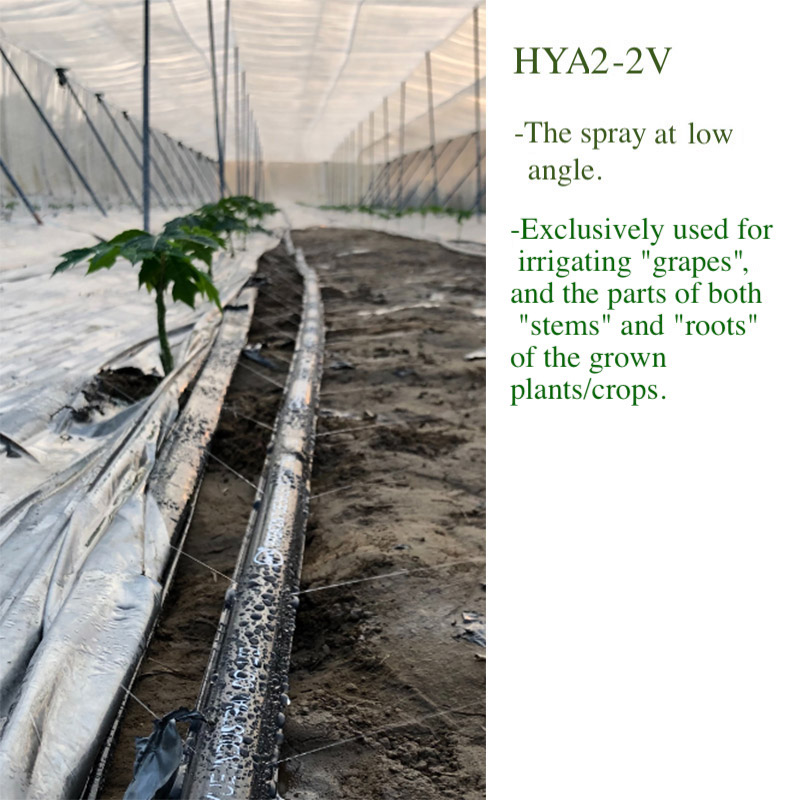

Pattern : HYA2-2V (Spray at low angle)
Size : 1″ (2 holes)

Pattern : HYA1-2D / HYA2-3D (Enhanced strong balance)
Size : 3/4″ (2 holes)



HYA1-2 3/4″ 2 holes
HYA2-3 1″ 3 holes
HYA3-3 1-1/4″ 3 holes

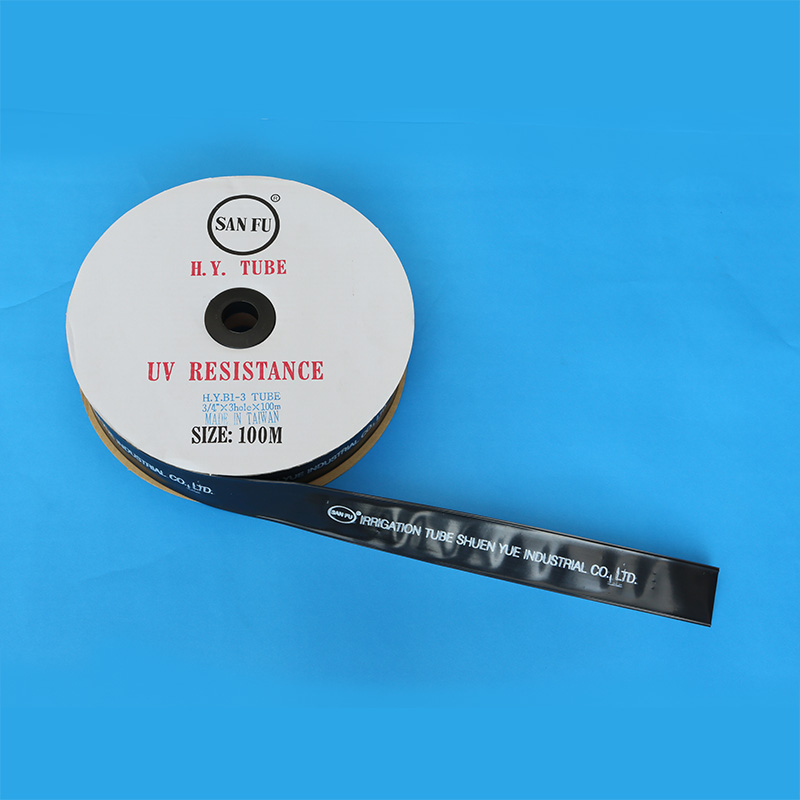

HYB1-3 3/4″ 3 holes

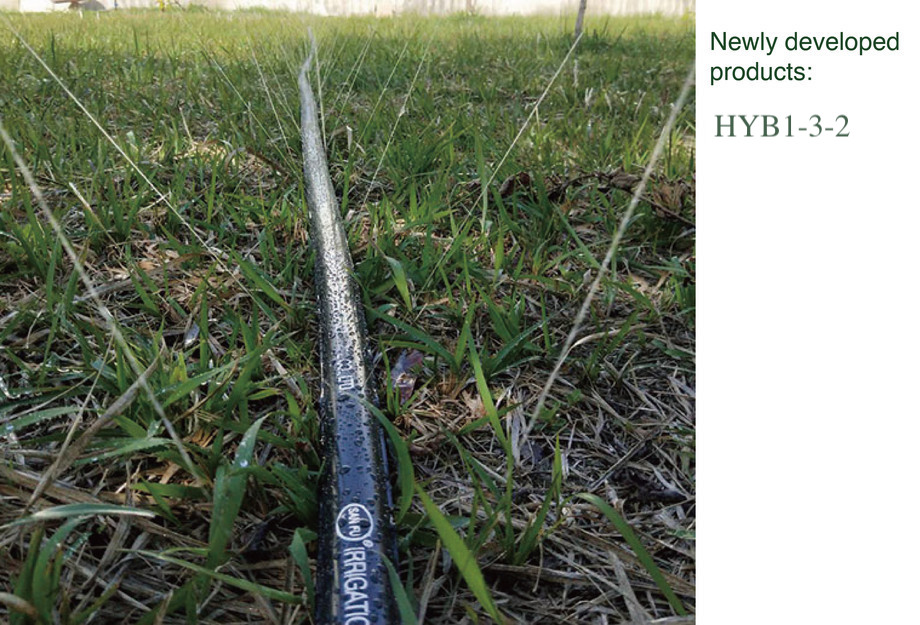

HYB1-3-2 3/4″ 3+2 holes
HYB2-3 1″ 3 holes
HYB2-3W 1″ 3 holes
HYB3-3 1-1/4″ 3 holes
HYB3-5 1-1/4″ 5 holes
HYA2-2V 1″ 2 holes
HYA1-2D 3/4″ 2 holes
HYA2-3D 1″ 2 holes



System 1 (SV-1)

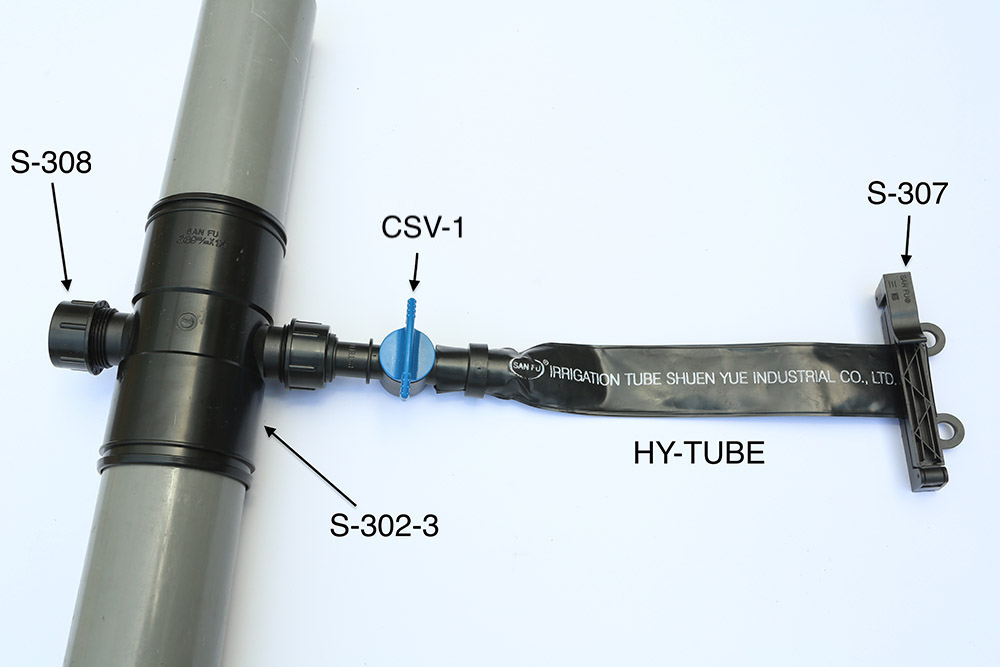

System 2(C-SV)

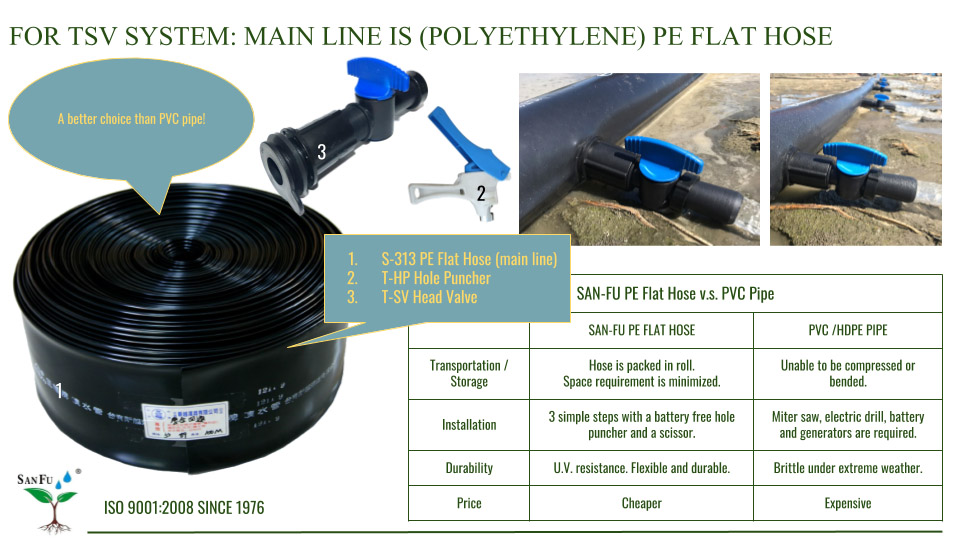

System 3(T-SV)

Picture Of Installation

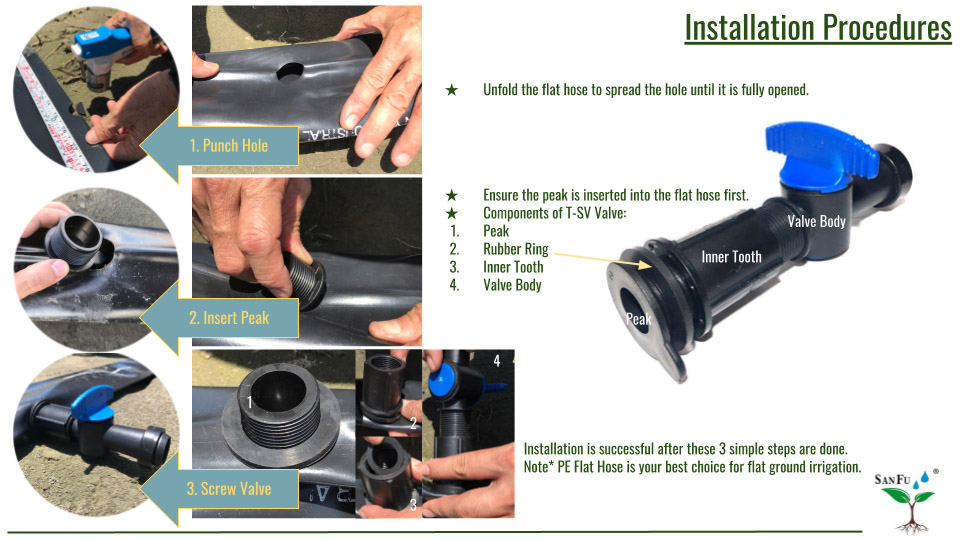

How to install

Picture Of Installation




C-SV Combination chart

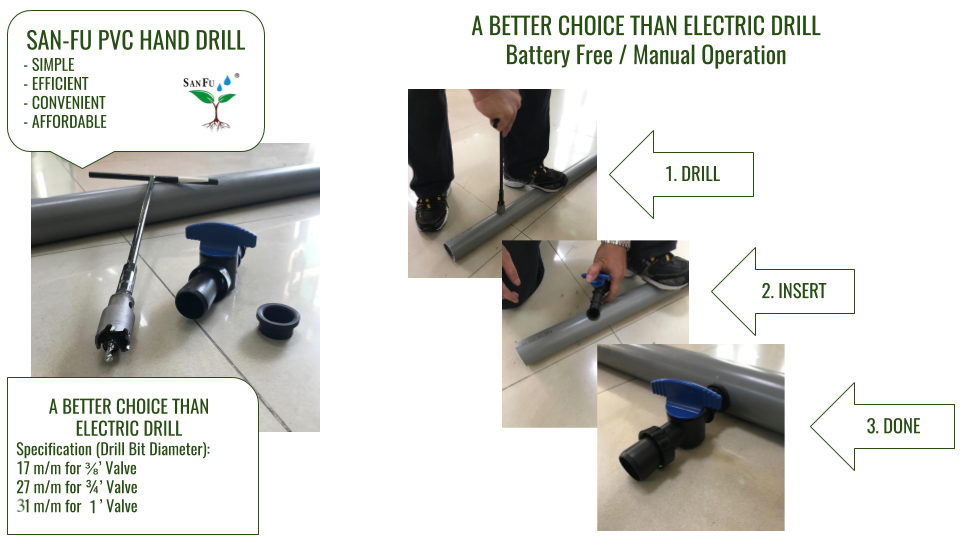

How to install




Comparison Chart
